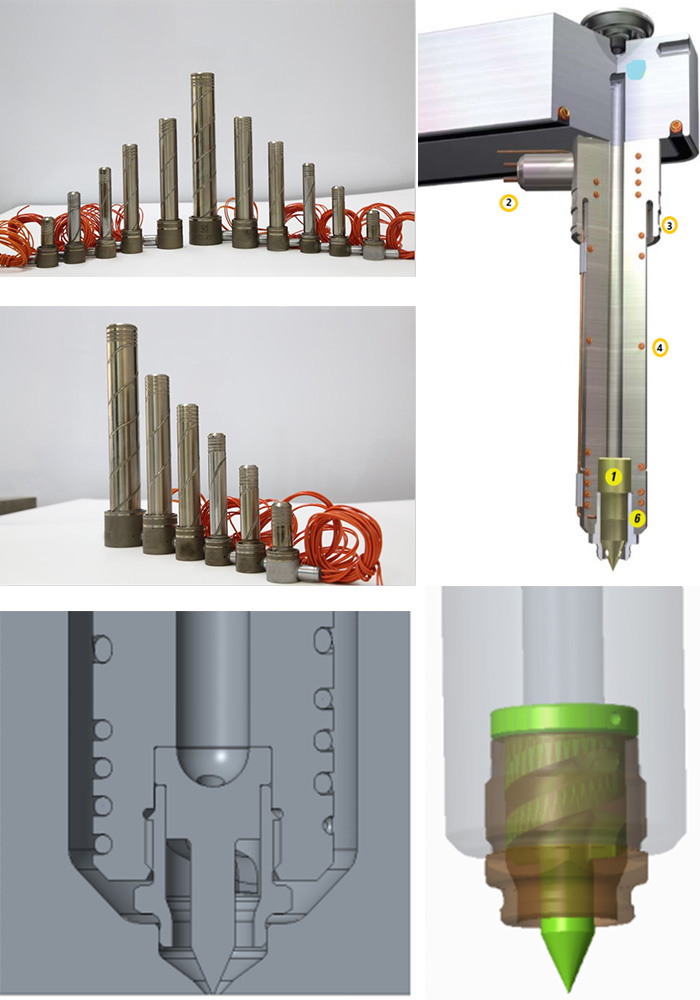

Nozzle Series | Size | Injection Amount / Nozzle | Flow Path Diameter (mm) | |
Open | Valve Type | |||
PZCB | small | <50g | 6 | 8 |
PZDB | medium | 50-200g | 8 | 11 |
PZHB | big | >200g | 12 | 16 |
PZCB | PZDB | PZHB | |
Pointed Gate |
| ||
E-type cusp gate (ET) | √ | √ | √ |
Extended E-tip point gate (EET) | √ |
|
|
F-type cusp gate (FT) | √ | √ | √ |
Extended F-type cusp gate (EFT) |
| √ | √ |
Dashuikou |
| ||
Type C large nozzle (CS) |
| √ | √ |
Bimetal C-type large nozzle (BCS) | √ | √ | √ |
Straight-through large nozzle (HS) | √ | √ | √ |
Extended straight-through large nozzle (EHS) | √ | √ | √ |
Valve Gate |
| ||
Type C valve gate (CV) |
|
|
|
Bimetal C-valve gate (BCV) | √ | √ | √ |
Straight-through valve gate (HV) | √ | √ | √ |
Extended straight-through valve gate (EHV) | √ | √ |
|
